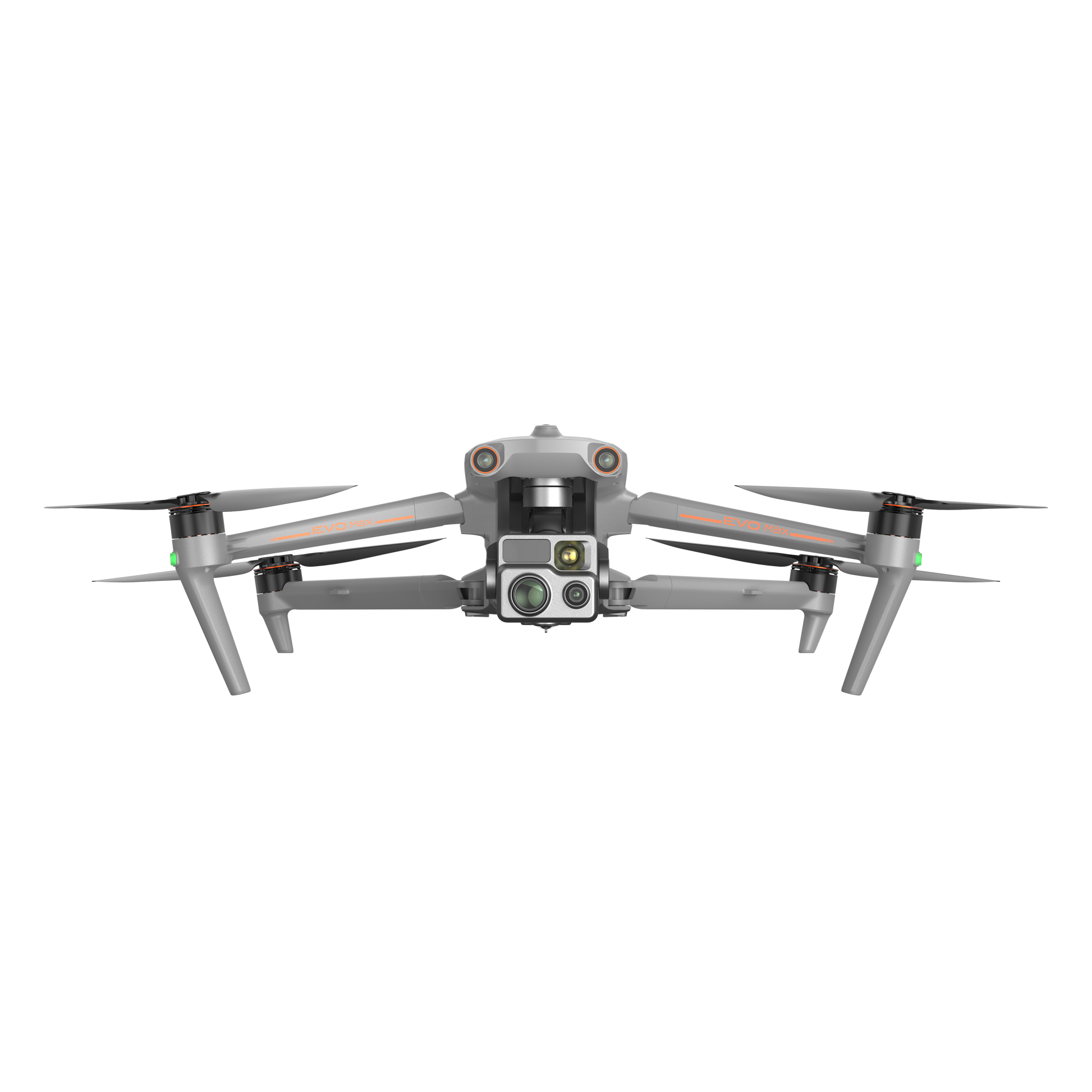

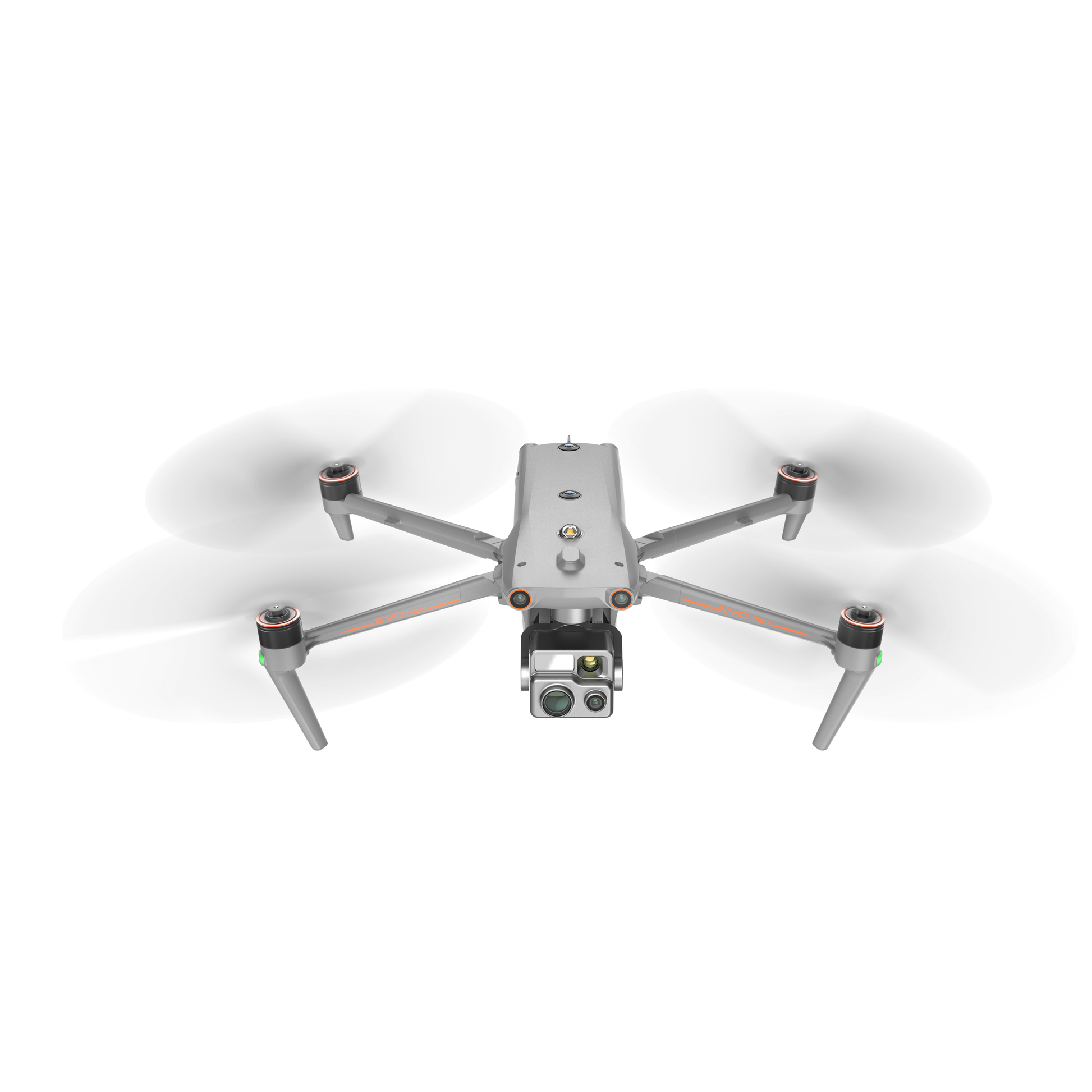

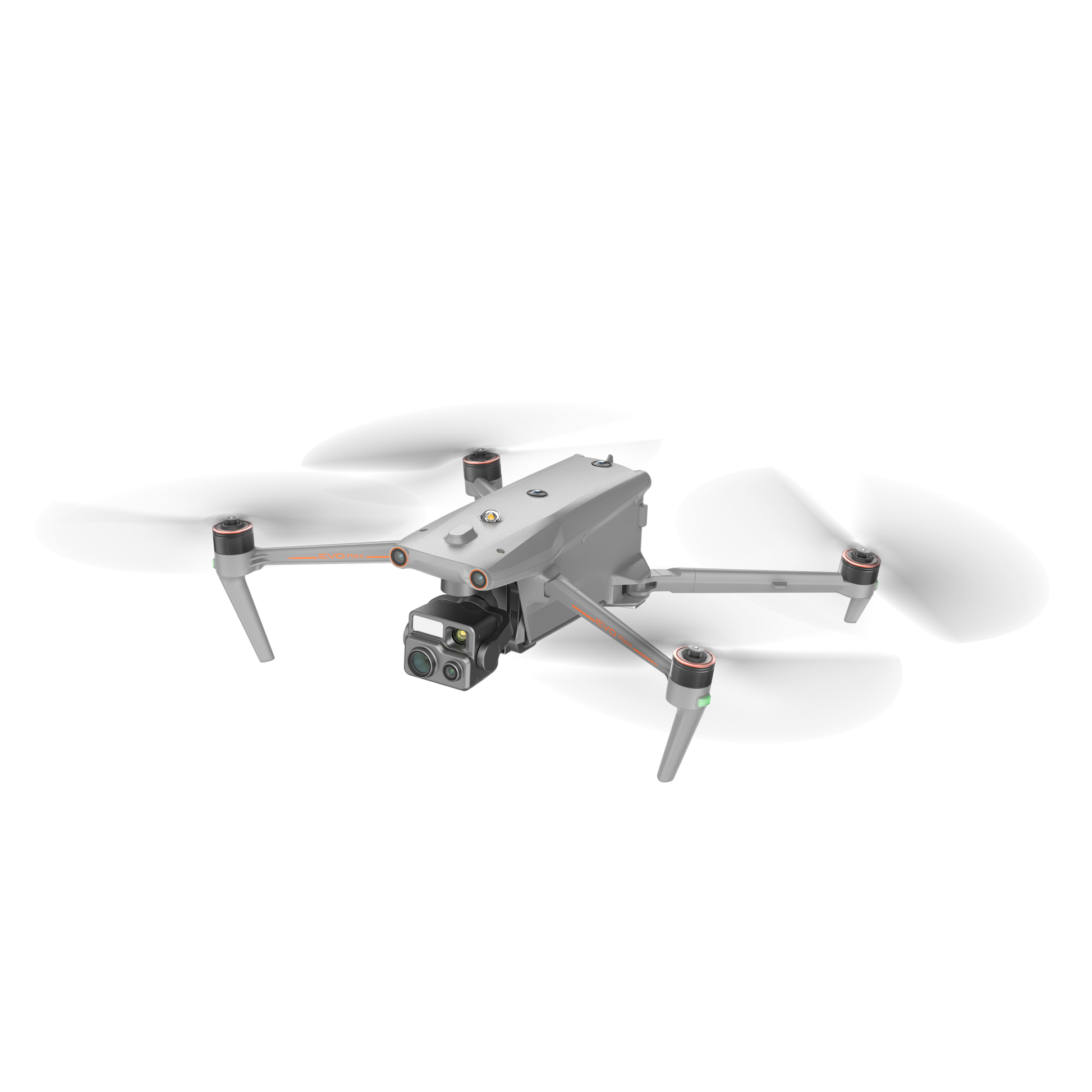

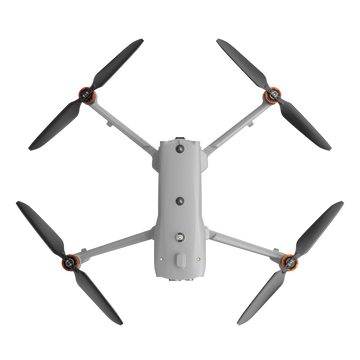

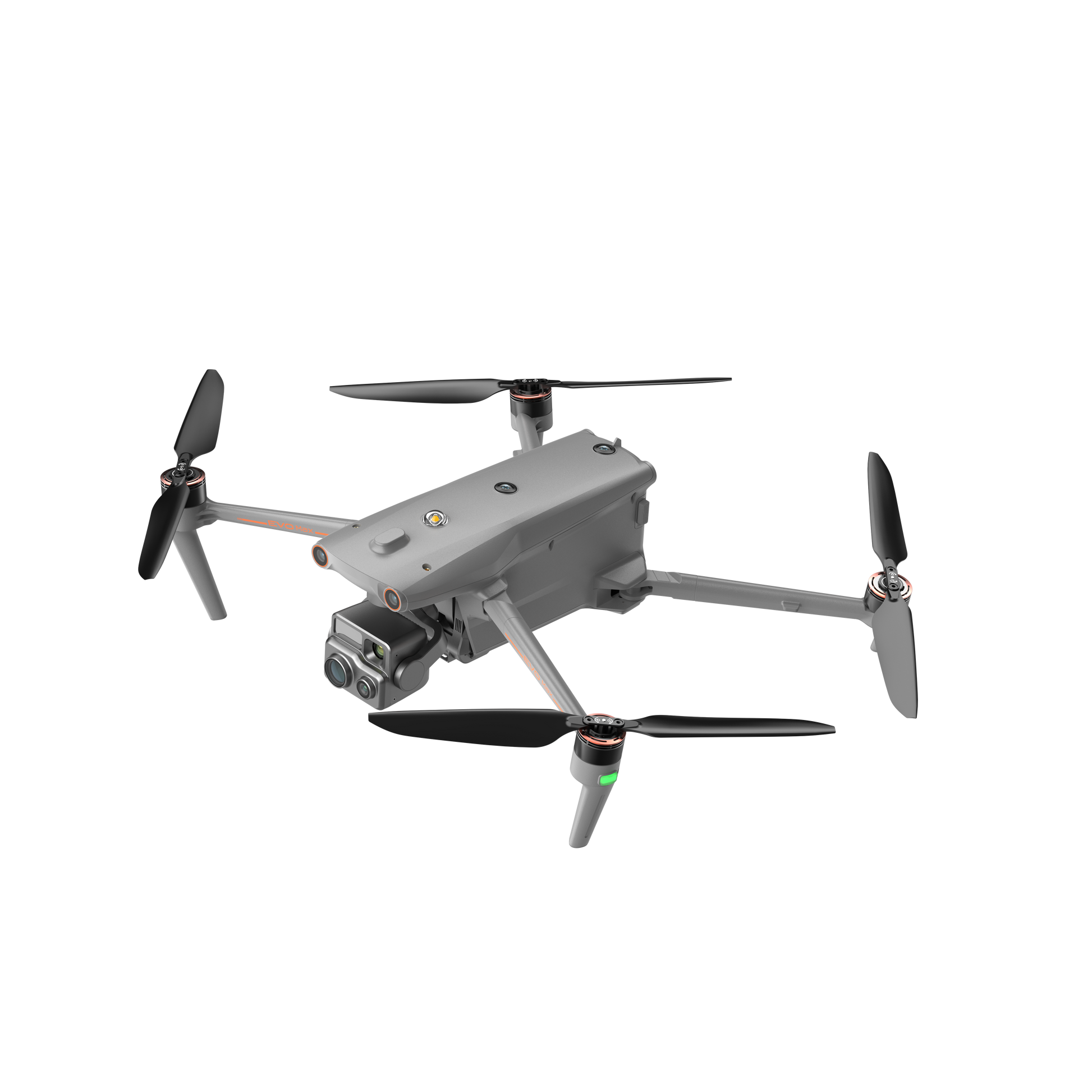

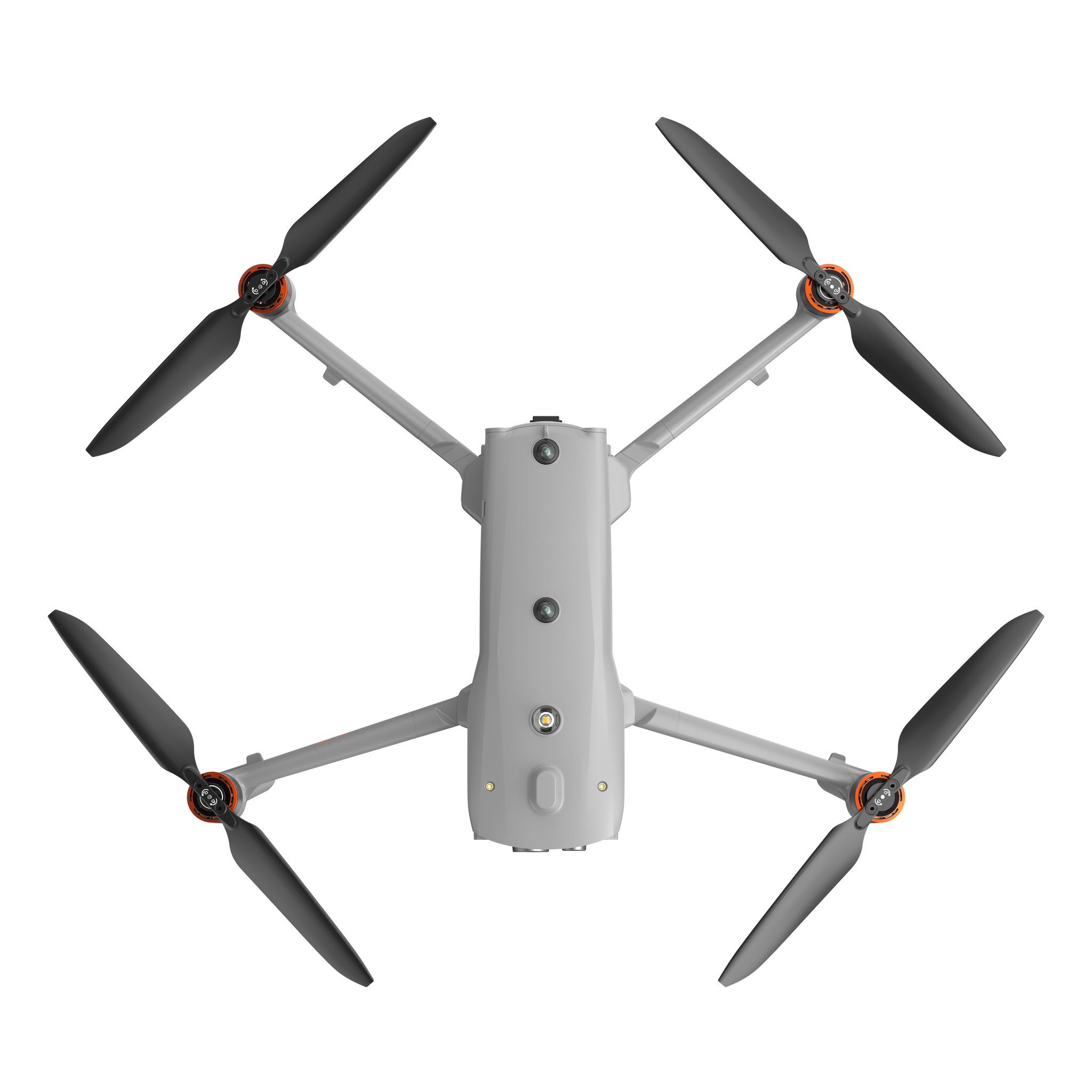

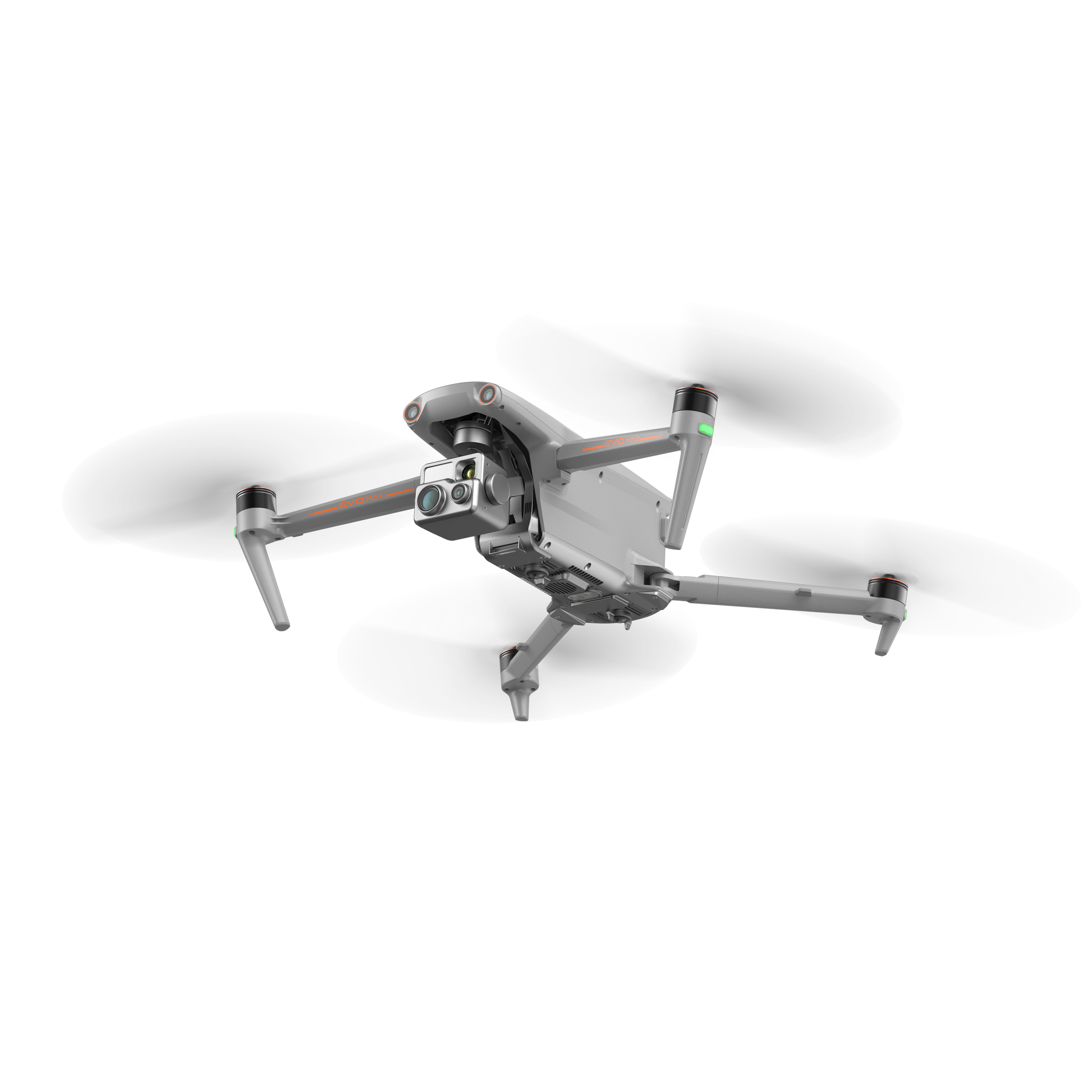

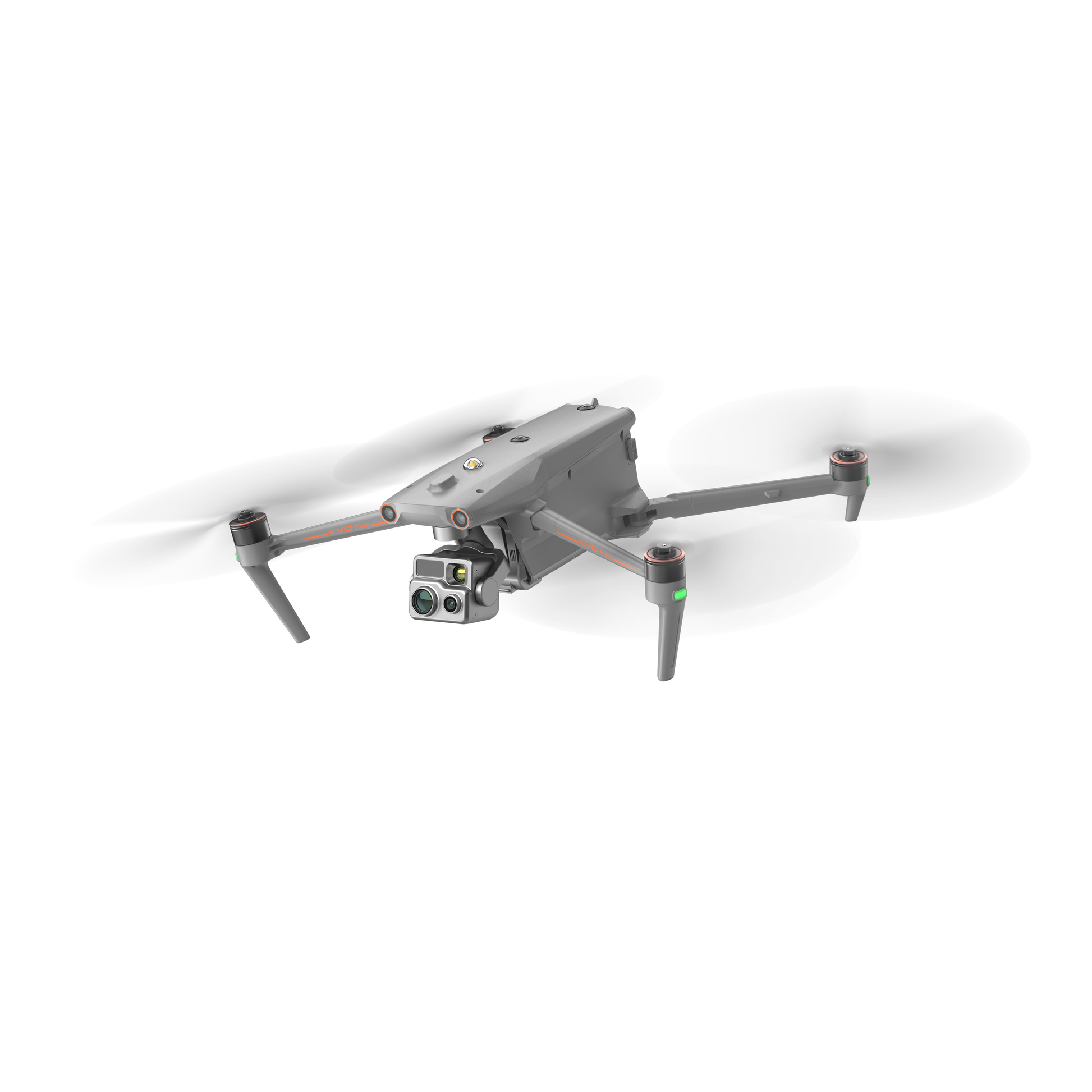

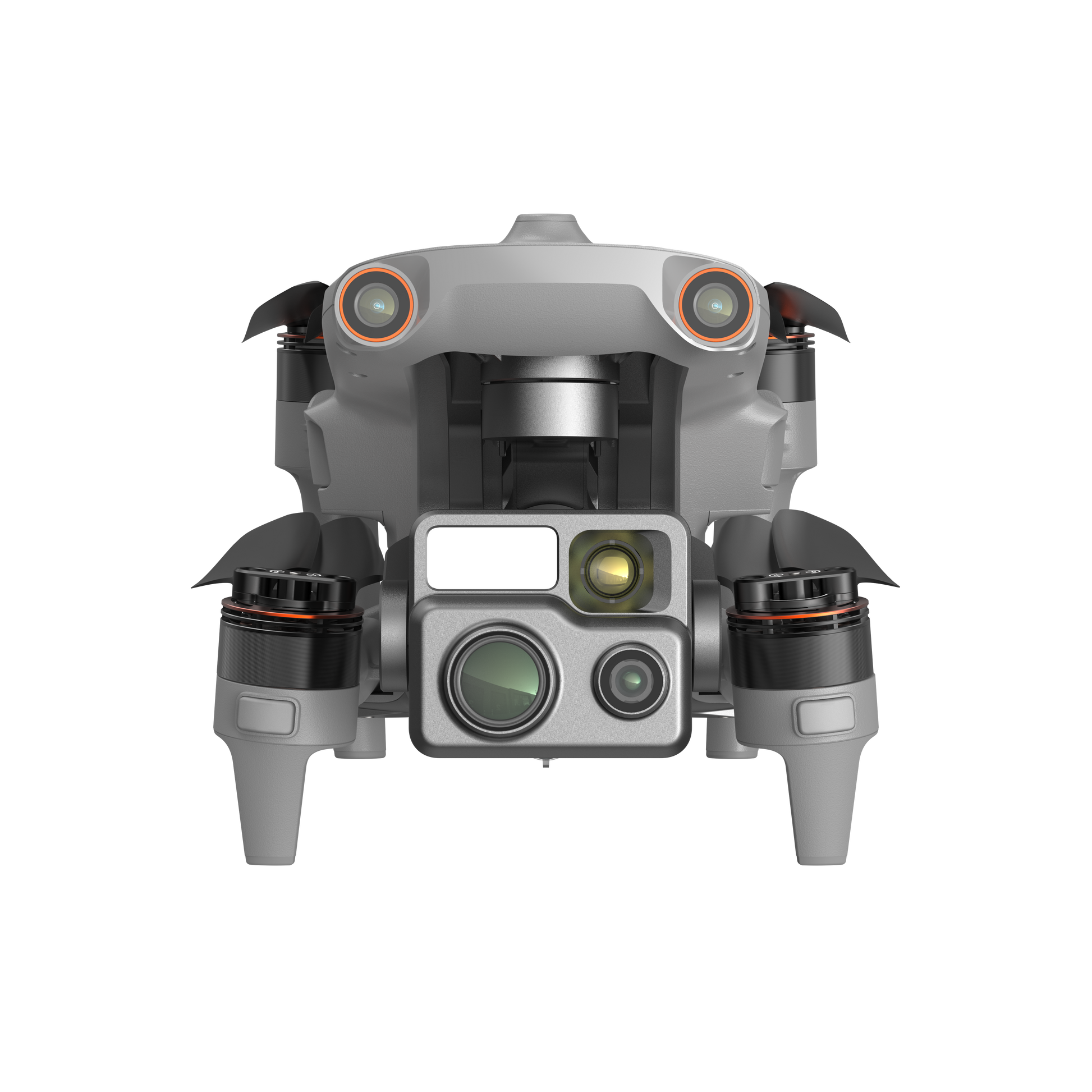

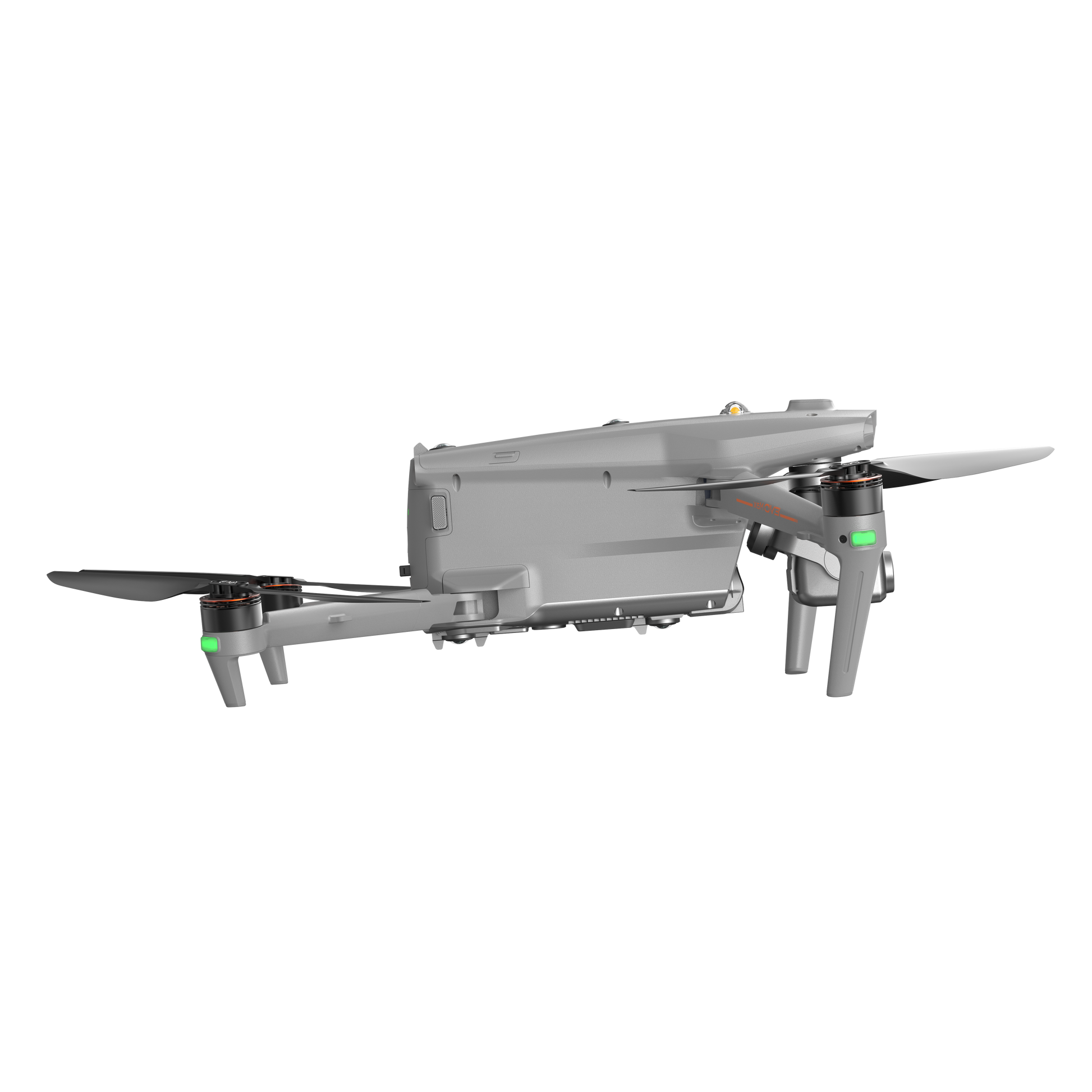

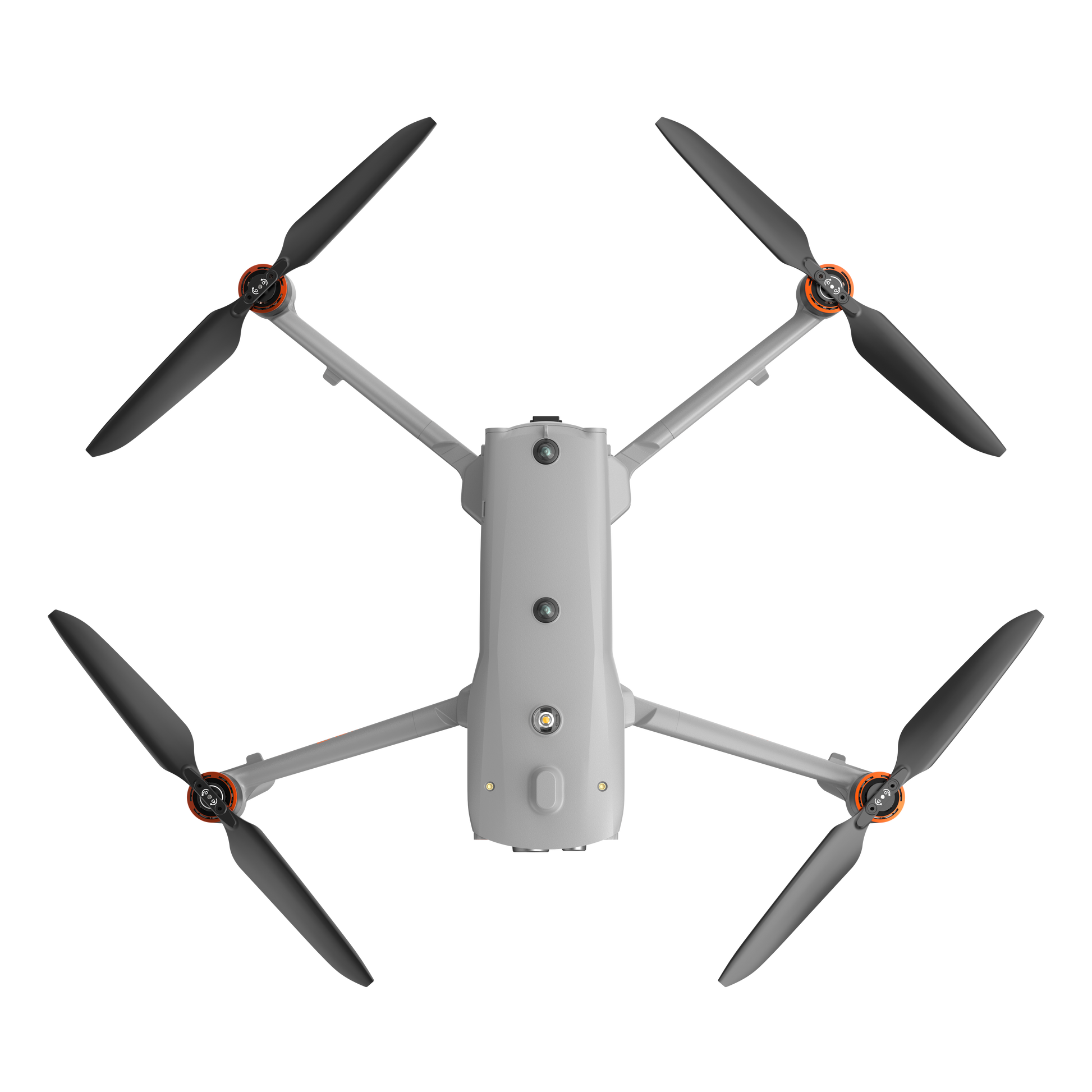

EVO MAX 4T XE

The EVO Max 4T XE utilizes Autel Autonomy's autonomous flight technology, enabling global path planning, 3D scene reconstruction, autonomous obstacle avoidance, and return-to-home capabilities in complex environments. Its high-precision visual navigation system ensures stable and reliable flight in conditions of strong signal interference, signal occlusion, or weak signals. This drone introduces the industry's first A-Mesh networking technology, supporting the free networking of multiple devices for integrated air-ground network coverage. The combination of "binocular fisheye vision + millimeter-wave radar" multi-sensor fusion perception Technology provides 720° all-around sensing and obstacle avoidance capabilities, allowing for all-weather operation. Equipped with the FusionLight camera 4T XE integrates a 4K 10x continuous optical zoom camera, an ultra-sensitive wide-angle camera, a thermal imaging camera, and a laser rangefinder, efficiently empowering public safety, energy inspection, emergency management, and setting a new benchmark for industry application drones.

Specifications:

Weight (including battery, gimbal camera, and propellers): 1635g

Dimensions: 562*651*147mm (unfolded with propellers)
                     318*400*147mm (unfolded without propellers)
                     257*145*131mm (folded without propeller)

Maximum endurance time: 42 mins

Maximum horizontal flight speed: 23m/s

Maximum wind resistance: 12m/s (27mph)

Operating frequency: 900MHz / 2.4GHz / 5.2GHz / 5.8GHz

IP protection level: IP43 (*Custom service)

Image transmission distance: 15 kilometers

GNSS: GPS / GLONASS / Galileo / BDS
